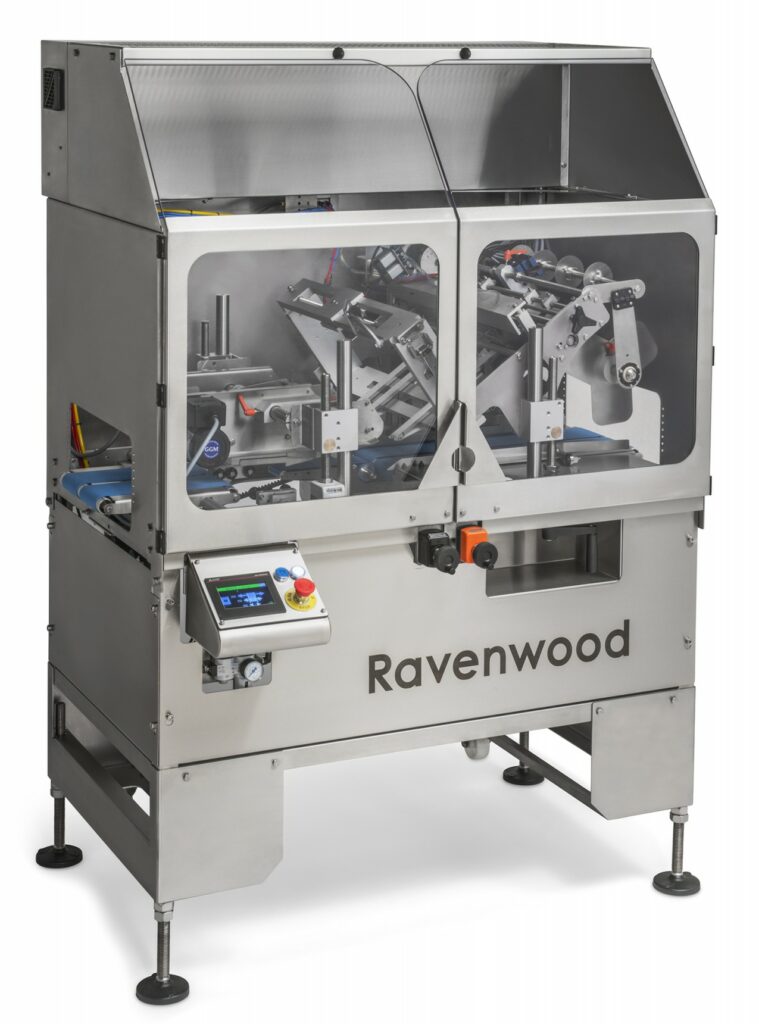

Ravenwood Nobac 5000

The Nobac 5000 Linerless Label Applicator is Ravenwood’s flagship machine, suitable for a broad range of food packaging applications.

Key Specifications
Label length mm500
Label/Sleeve width mm55 - 125 mm*
Pack height mm120*
Speed ppm150*
Power Supply v/Hz230/50
Consumption kW0.5
Air Consumptiopn cfm4

Features

  • Guarding allows for better security and access to the machine when needed, allows for protruding products to go through the machine, for more flexibility.
  • Modular construction allows bolt-on or off, twin-head option for non-stop operation
  • Multiple options available for coding systems for both thermal transfer and thermal inkjet, or a combination of both

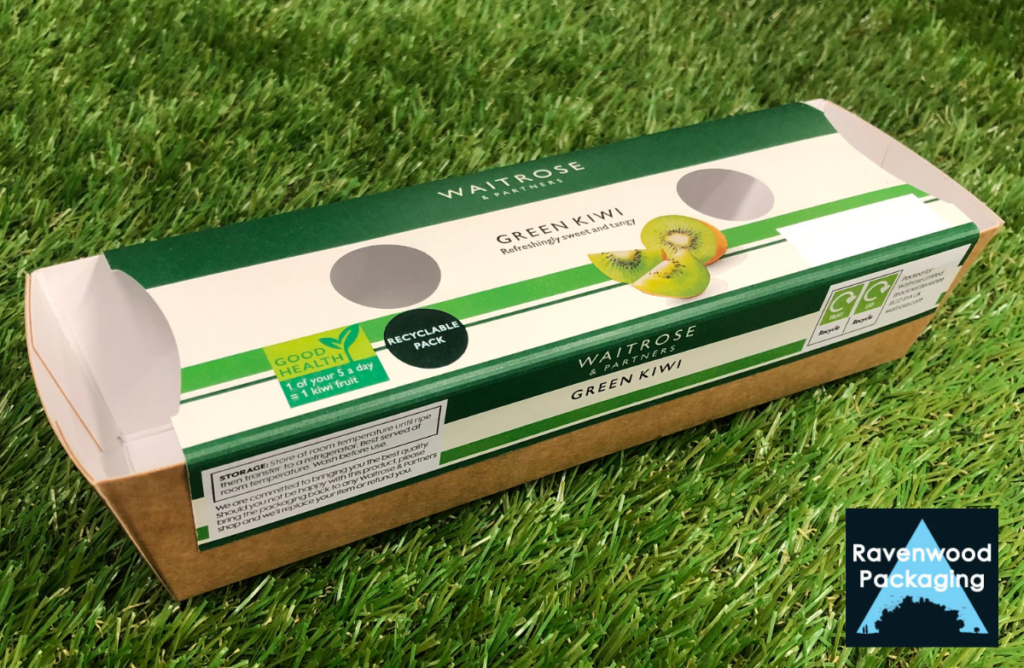

  • Optional thermal inkjet coding for the edge of cardboard trays
  • Independent driven belt transfer system for easier set up, for different glue line positions
  • New label reel braking system provides better reel control especially on different substrates, such as PP or thicker boards
  • Optional motor adjustment
  • Capable of labelling fixed weight products or linking to weigh-scales for variable-weight or check-weight products
  • Utilizes thin board sleeves with adhesive optimized for specific products
  • Speeds achieved up to 150 ppm (*General range for system. Specific label sizes and speeds agreed at time of build)
  • Labels can be supplied in a range of weights and materials

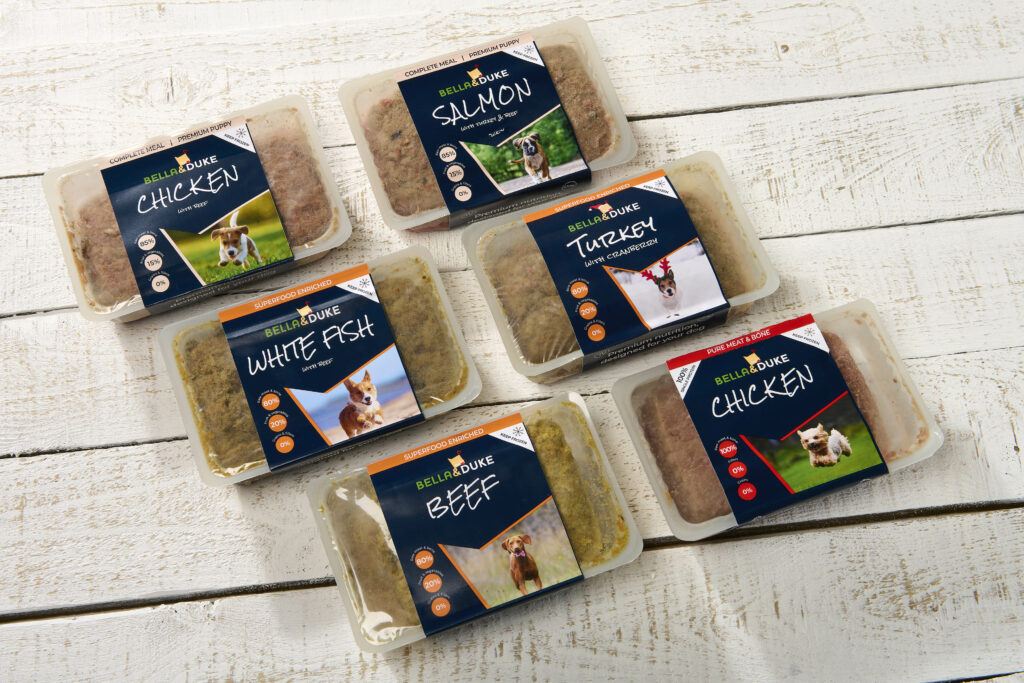

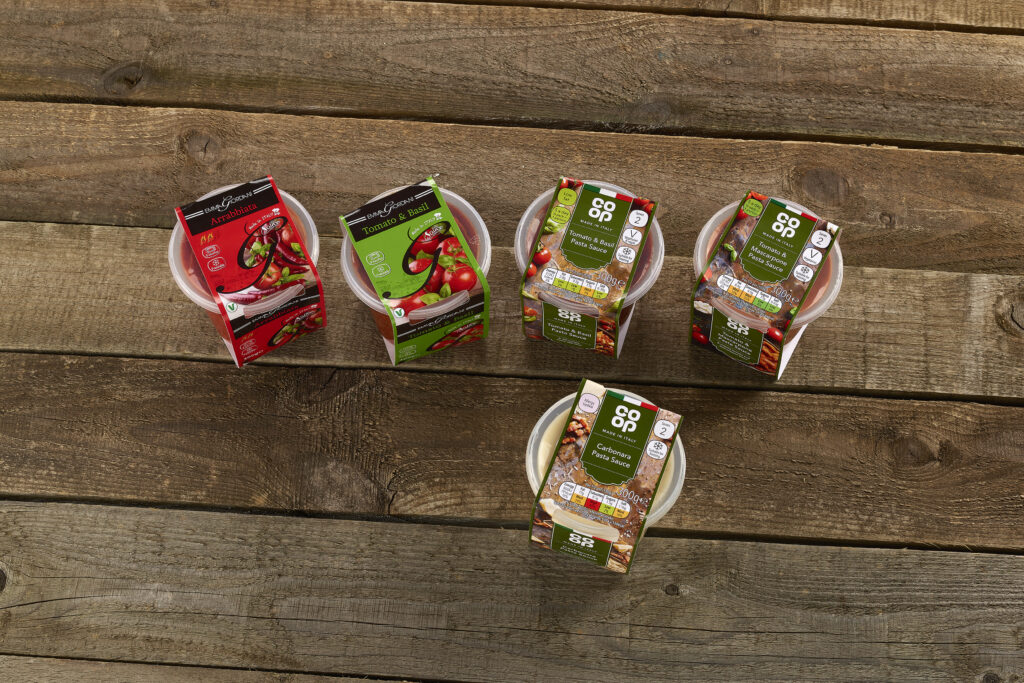

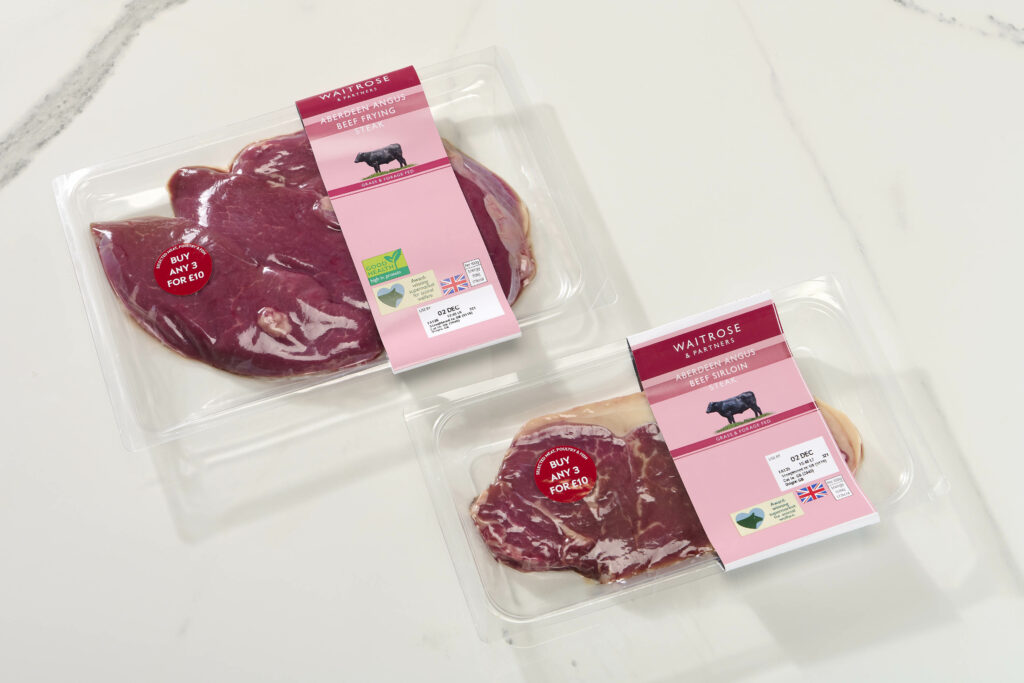

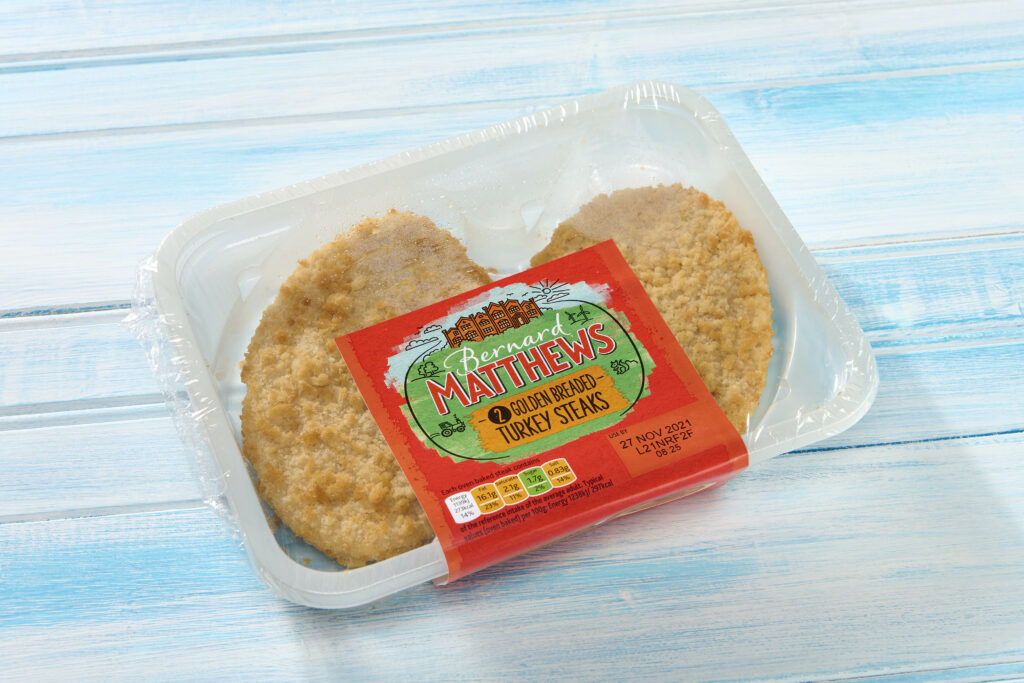

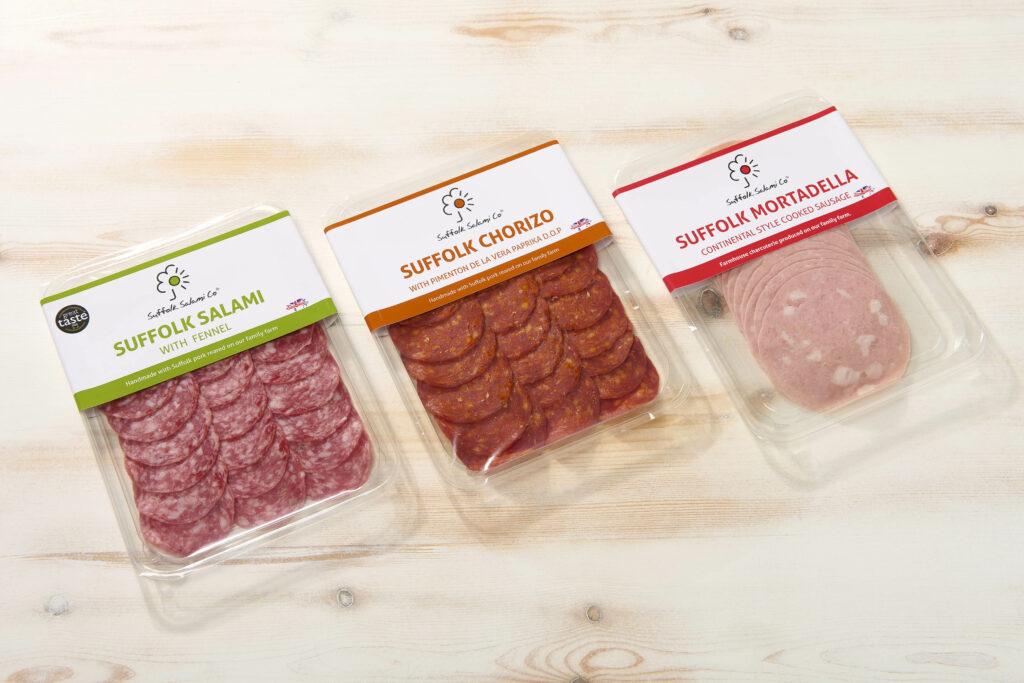

  • Many label formats including top labelling, die cut and shaped

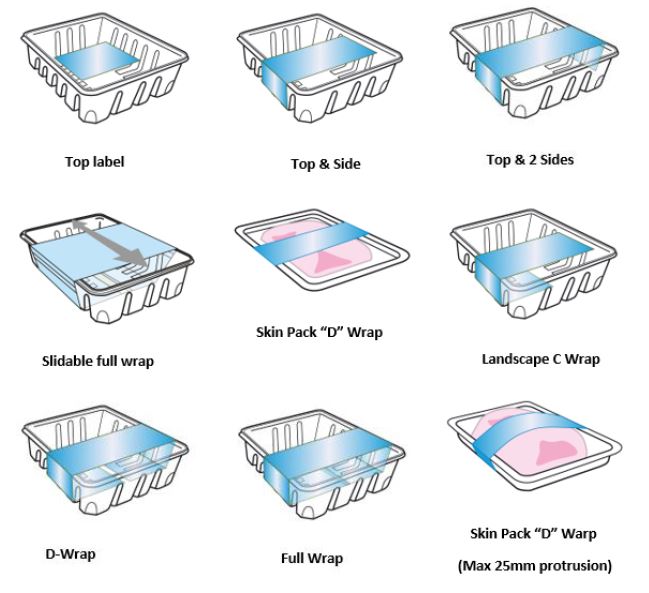

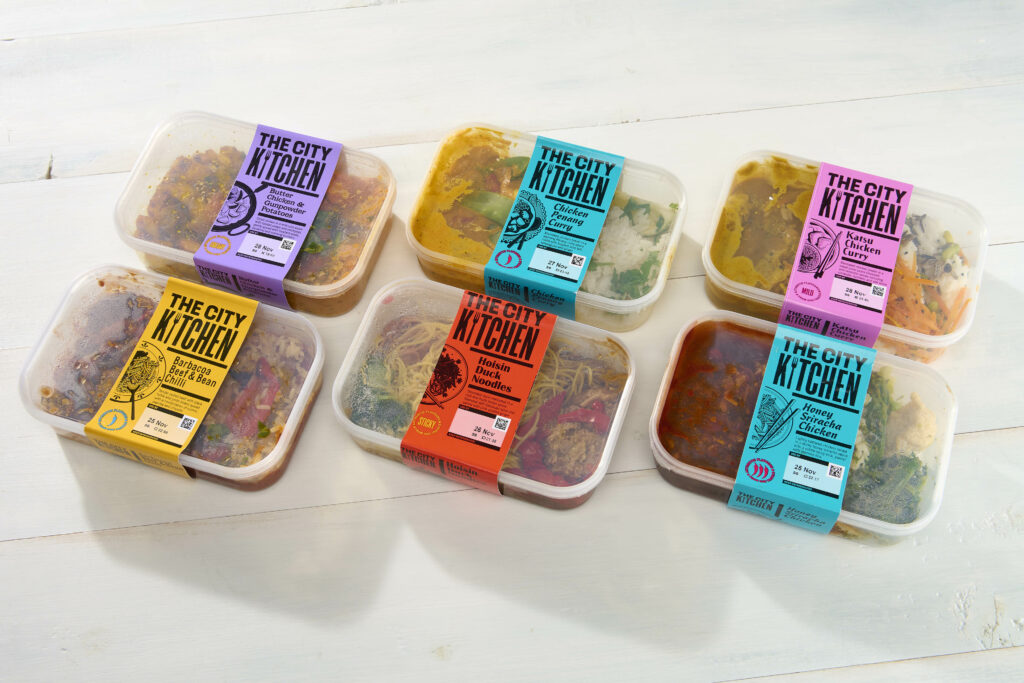

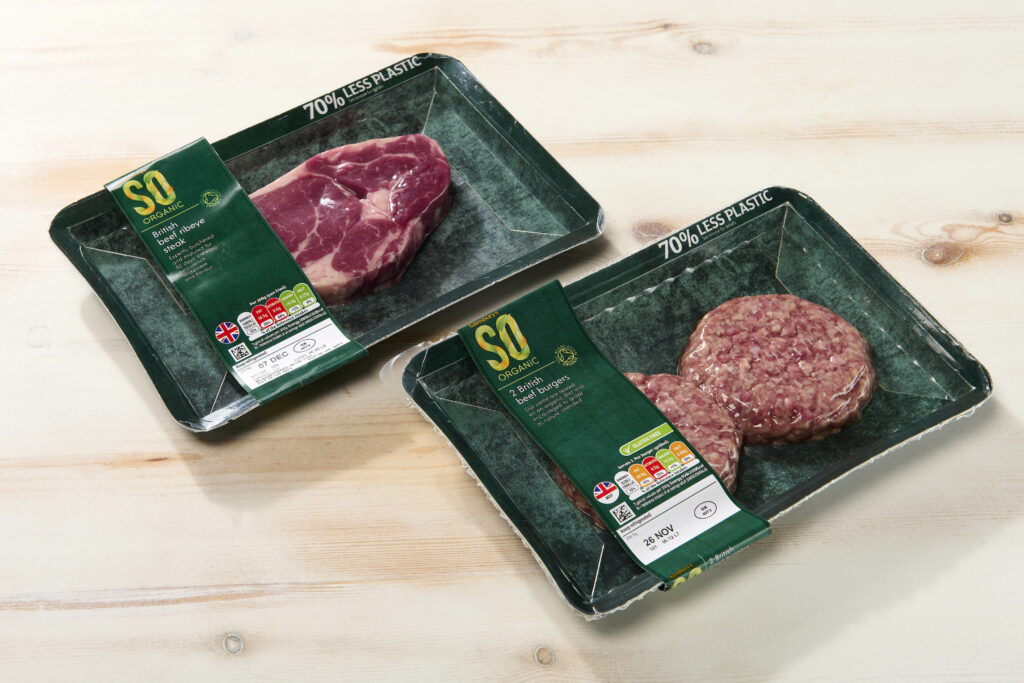

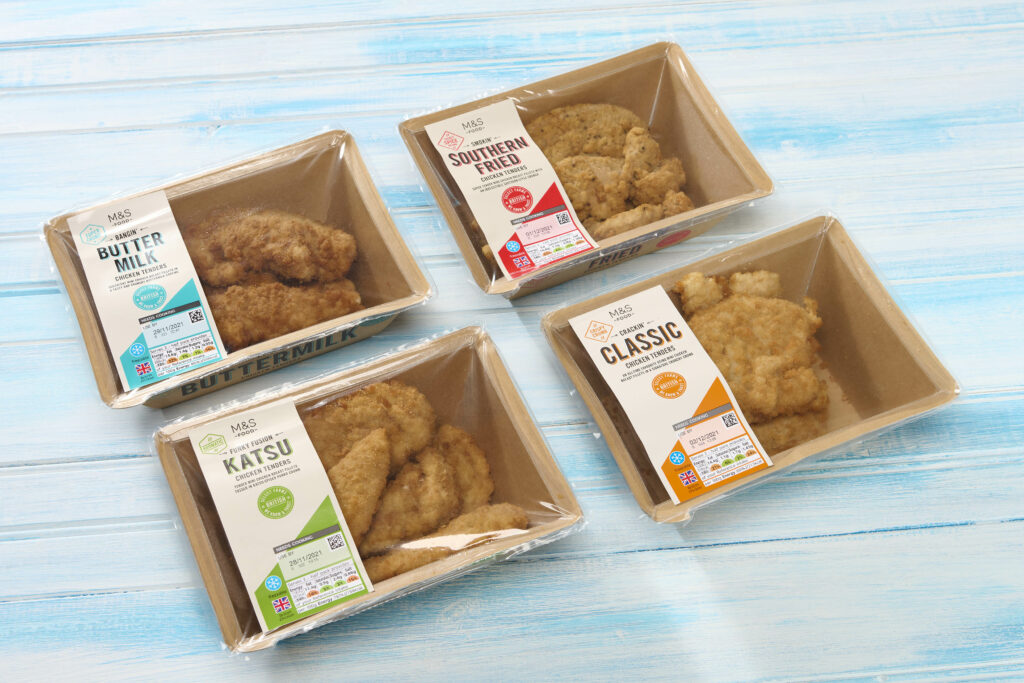

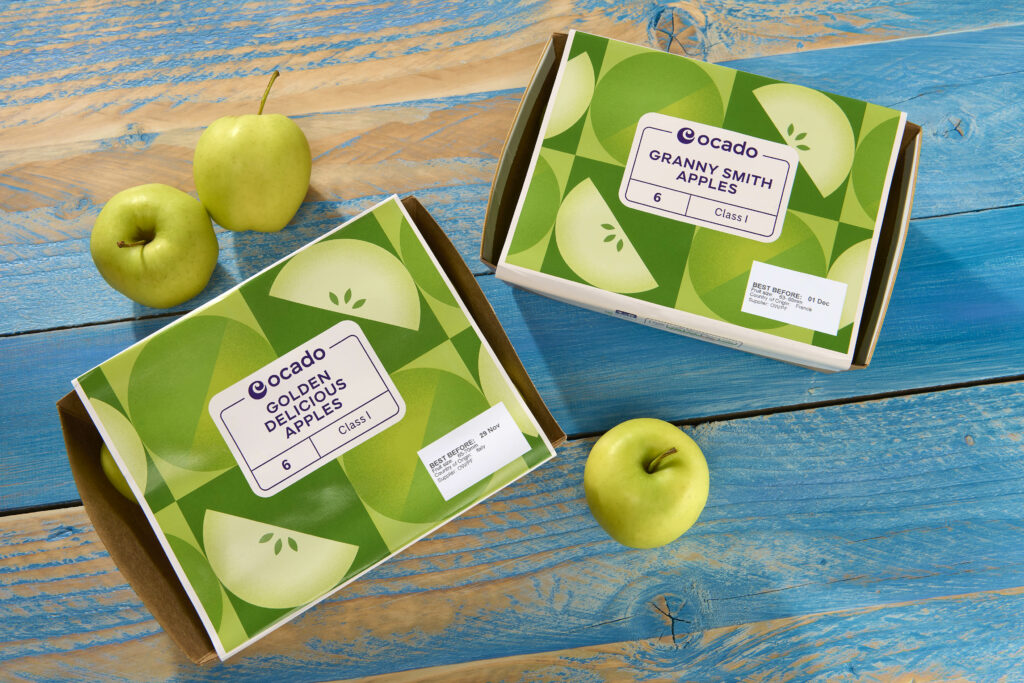

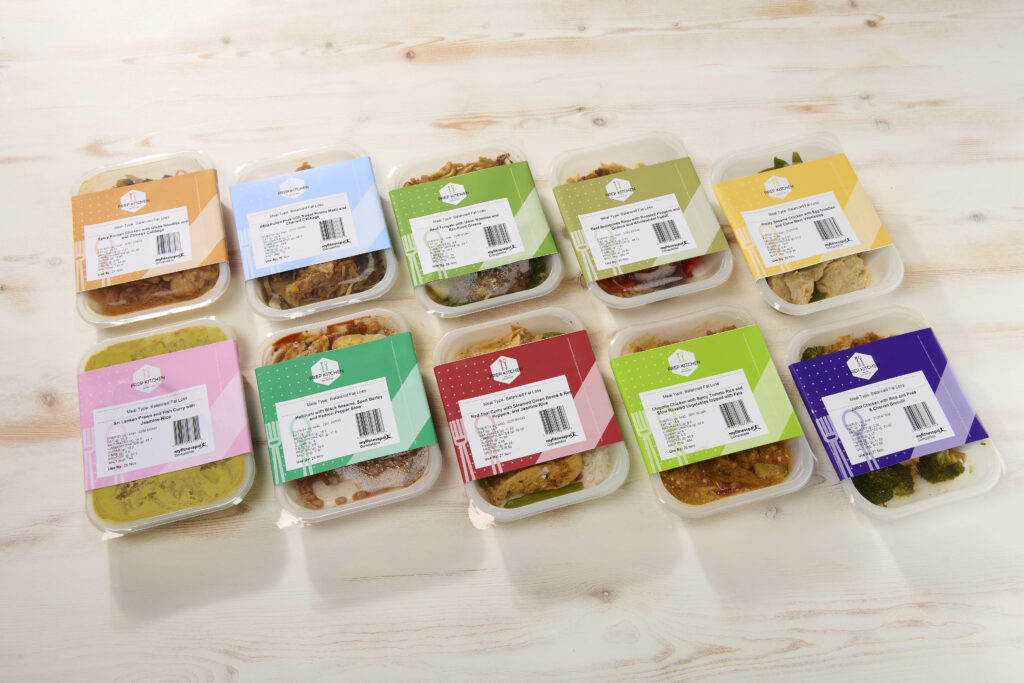

Label Formats

Versatile label formats for maximum efficiency and productivity
