Automatic Horizontal Strapping Machine

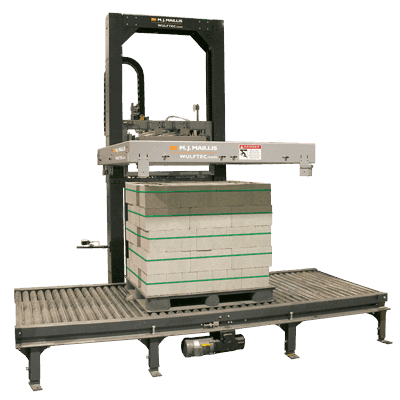

The VarioMaster 9490 Strapping Machine is a high-performance automatic horizontal strapper designed to strap horizontal pallets and single layers.
AC variable frequency drives standard
NEMA 4/12 control panel dust tight and waterproof
Organized control panel
The control panel is UL508A approved
Superior Electrical/Electronic Design including Allen Bradley MicroLogix PLC and AC drives
User friendly touch screen
Easy to understand alarm signalization
All motors, proximity sensors, photoeyes and other sensors have quick disconnect cables that simplify installation and maintenance
Photoeyes are maintenance free and protected
Made of heavy-duty steel
Strapping head indexes towards the load before tensioning sequence
Strapping head is mounted on a movable assembly guided through linear bearings, and activated by an electric motor with a timing belt.
Bottom section of the strapping arch can be a standard undertrack style or an electric motor driven pallet bayonet for "through-pallet" strapping or a combination of both.
Up to 8 straps per minute may be applied
Electronic tension control through a variable frequency drive
Coils of PET or polypropylene strapping with a core diameter of 16" can be fitted to the high speed dispensers
Ability to strap with polyester or polypropylene strapping without parts changes.
Non-Proprietary parts accessible on a local base
Allen Bradley MicroLogix 1400 PLC
Allen Bradley PanelView Plus 600 monochrome Touch Screen Interface
24V control system
Current overload protection
NEMA 4/12 control cabinet
Autoheight sensing photoeye
Power on/off lockable switch and indicator light
460VAC motor and contactor
Two emergency stop stations
Manual function for strapping head and conveyors
Intuitive alarms diagnostic on touch screen
Machine and head cycle counter
Strap track with under track configuration to allowing under pack strapping
2 fully adjustable strapping patterns
4 communications I/O signals with upstream & downstream system
Allen Bradley PowerFlex 525 drive, 460VAC
Allen Bradley series 100 contactor
120 VAC outlet in control panel for service work
GT41 N Strapping Head
Ability to strap with polyester (PET) from 3/8 to 5/8 wide and .020 minimum thick strapping
Consistently reproducible strap tensioning
Consistently high seal efficiency
Environmentally favorable sealing by vibration welding
Separate drive section for high speed strap feeding and take up and to achieve maximum tension levels
Electronic strap circulation control
3 HP AC gear motor with Allen Bradley Powerflex 525 AC drive
High speed dispenser with pulley block accumulation system
Electrical brake that can fits standard coils of PET/PP strapping with a core diameter of 16" and a width of 6".
Heavy duty folded sheet metal uprights with upper frame structurally integrated with base for greater stability
Production Rate: 100 loads per hour
Machine Dimensions: 59" L x 139" W x 169" H
Maximum Load Size: 50” wide x 50” long and 80” high
Load Weight: Limited to conveyor capacity
Approximate Shipping Weight: 5000 lbs
Electrical Requirements: 460 V /3 ph /60Hz 15A
