Orbital Horizontal Ring Stretch Wrappers

Orbital Stretch Wrappers are stretch wrapping systems that use a vertical rotating ring to wrap a product inside it. Commonly referred to as Horizontal Stretch Wrappers, these systems offer a great solution for wrapping long and wide loads. Orbital Stretch Wrappers offer safe and efficient ways to stretch wrap lumber, doors, windows, piping, textiles and many more.

Lantech Lan-ringer®

The Lantech Lan-ringer® is an automated horizontal ring stretch wrapper which can adapt to any application where security, protection, flow efficiency and cost containment are important. This is a very cost efficient system which eliminates costly labour and replaces lesser systems such as shrink bundling, taping, strapping and corrugated cartons.

Features

  • Heavy duty ring bearing provides a simple method for driving and supporting the film carriage.
  • Patented Power-Thru® conveyor carries the product through the wrap zone.
  • Mesh door gives view of machine operation while guarding the wrap module.
  • Patented Power® Stretch film delivery system. Provides 150% standard and 100-300% available.
  • 4 ring sizes to choose from.

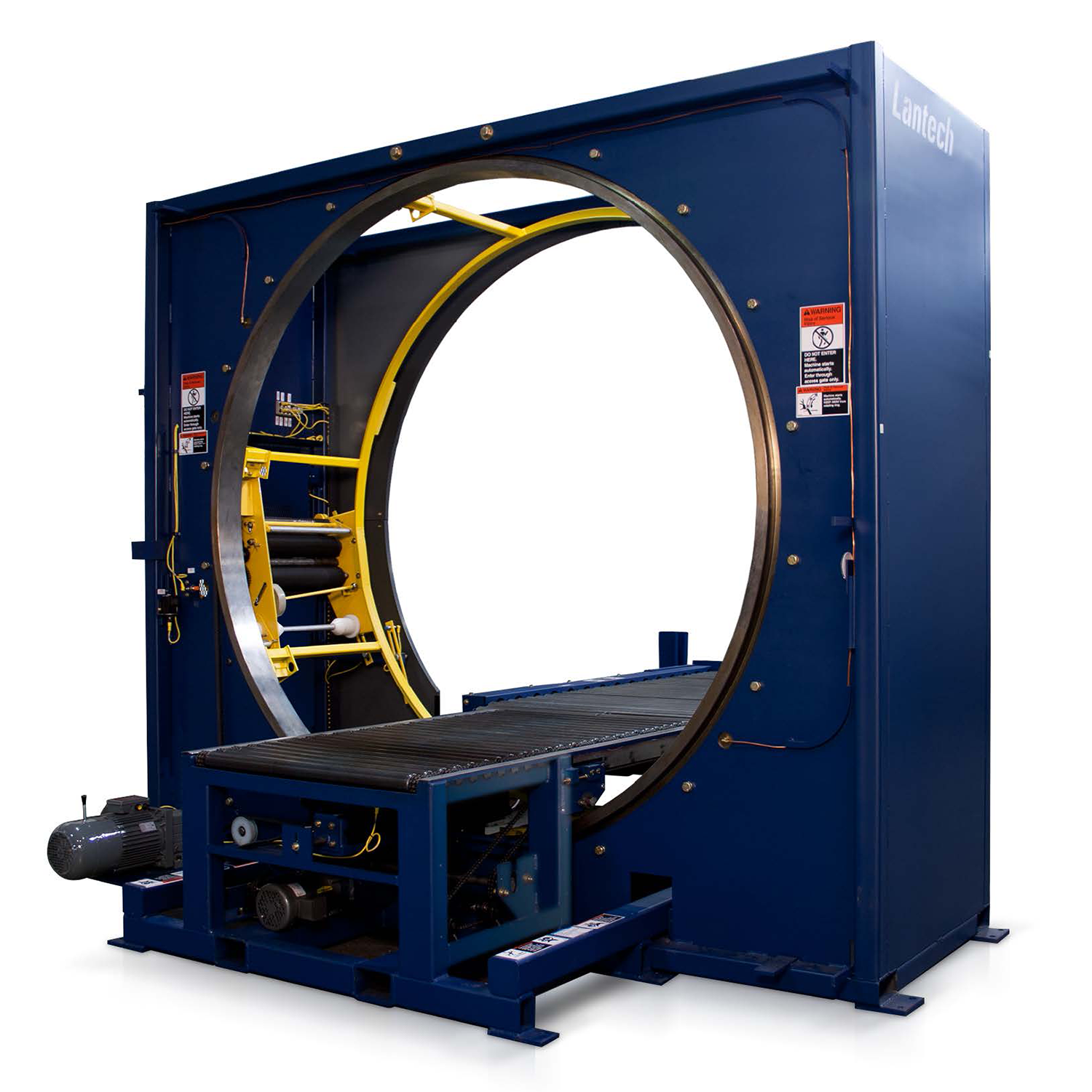

 Lantech Lan-ringer Orbital Horizontal Stretch Wrapper

Specifications

  • Series 200 wrapping speeds of up to 3 per minute [ series 300 up to 15/min.]
  • Pre-Stretch available from 100% to 300%.
  • Ring diameter sizes 40”, 60”, 75”, 90”.
  • Ring diameter sizes 40”, 60”, 75”, 90”.
  • Electrical 460V / 30A.

Wulftec WRWA-200

The Wulftec WRWA-200 Stretch Wrapper produces up to 120 loads per hour.

WRWA-200 manufactured by Wulftec offers an alternative to hand wrapping production. The WRWA-200 is a horizontal stretch wrapping system that is safer, stronger, and more reliable than any other horizontal stretch wrapper. The WRWA-200 comes with a 3 year warranty.

Features

  • 20” NO-THREAD® powered pre-stretch carriage
  • Optional side guides and hold downs
  • Ring bearing gearbelt drive with automatic lube station
  • Separate front and end wrap selectors
  • Allen Bradley SLC 5/03 PLC

Specifications

  • Maximum load weight 5,000 lbs
  • RPM based on ring size
  • Electrical 230V/3/60 20A
  • Maximum diagonal load dimension 8”
  • Motor 1HP

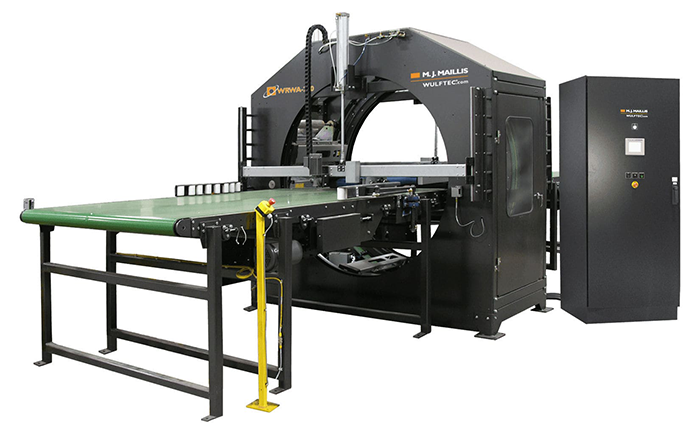

 Wulftec WRWA-200 Orbital Horizontal Ring Stretch Wrapper
