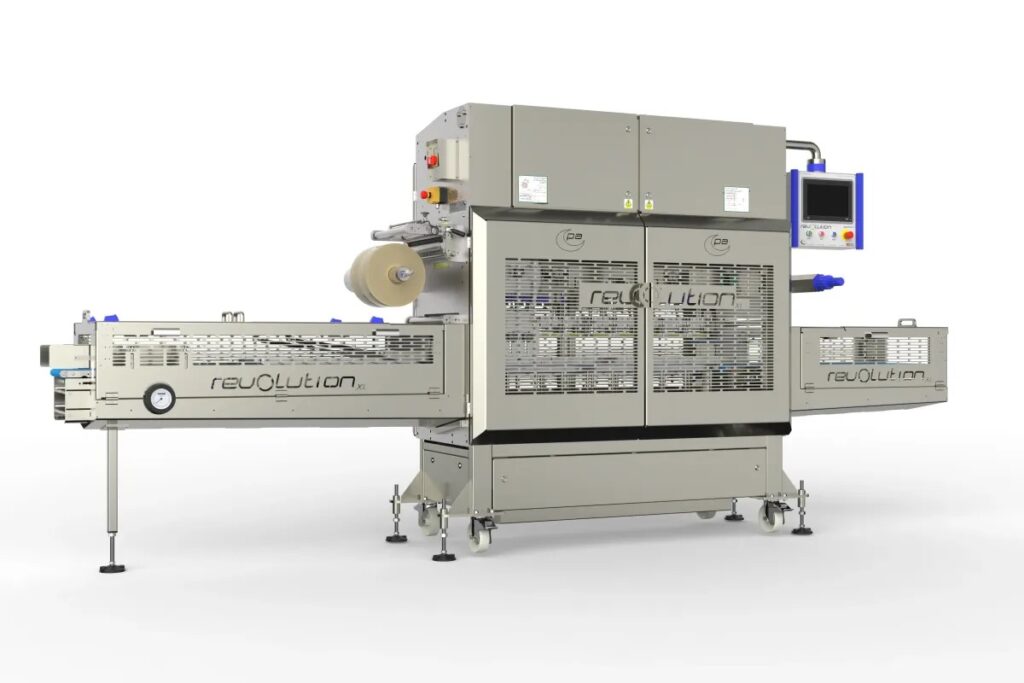

Packaging Automation Revolution XL

Packaging Automation’s Revolution can seal up to 200 packs per minute, making it one of the fastest tray sealers on the market. Stemming from the Revolution tray sealer, this is an extended model with a larger machine bed, capable of accepting more trays per cycle to maximize output. This Revolution XL tray sealing machine is fully electric so it does not require compressed air supply creating a reduce gas consumption.

Features:

  • POWERDRIVE – fully electric – zero air
  • Robotic in-feed, continuous motion system, increases throughput and avoids any pauses
  • Synchronized transfer from belt to sealing creating increased cycle speeds and less aggressive transfers
  • POD-tech, cartridge style tooling – gives a 90% reduction in any unplanned downtime
  • Manually adjustable self-centering in-feed guides (servo option available)

Specifications:

  • Quick release removal conveyors
  • Height – 2100mm
  • Width – 4710mm
  • Depth – 905mm
  • Electrical Supply – 32A 415V 3 Phase N+E 16A max/phase 50/60Hz

Always by Your Side

From the start to the finish, our team is with you, taking care of your equipment at every stage of the way!

Need help selecting a Top Sealing Machine?

Our Packaging Specialists have a deep understanding of automated packaging equipment and the best strategies to reduce your cost per pack.
