Loveshaw Little David LD-16R

Automatic Random Case Sealer

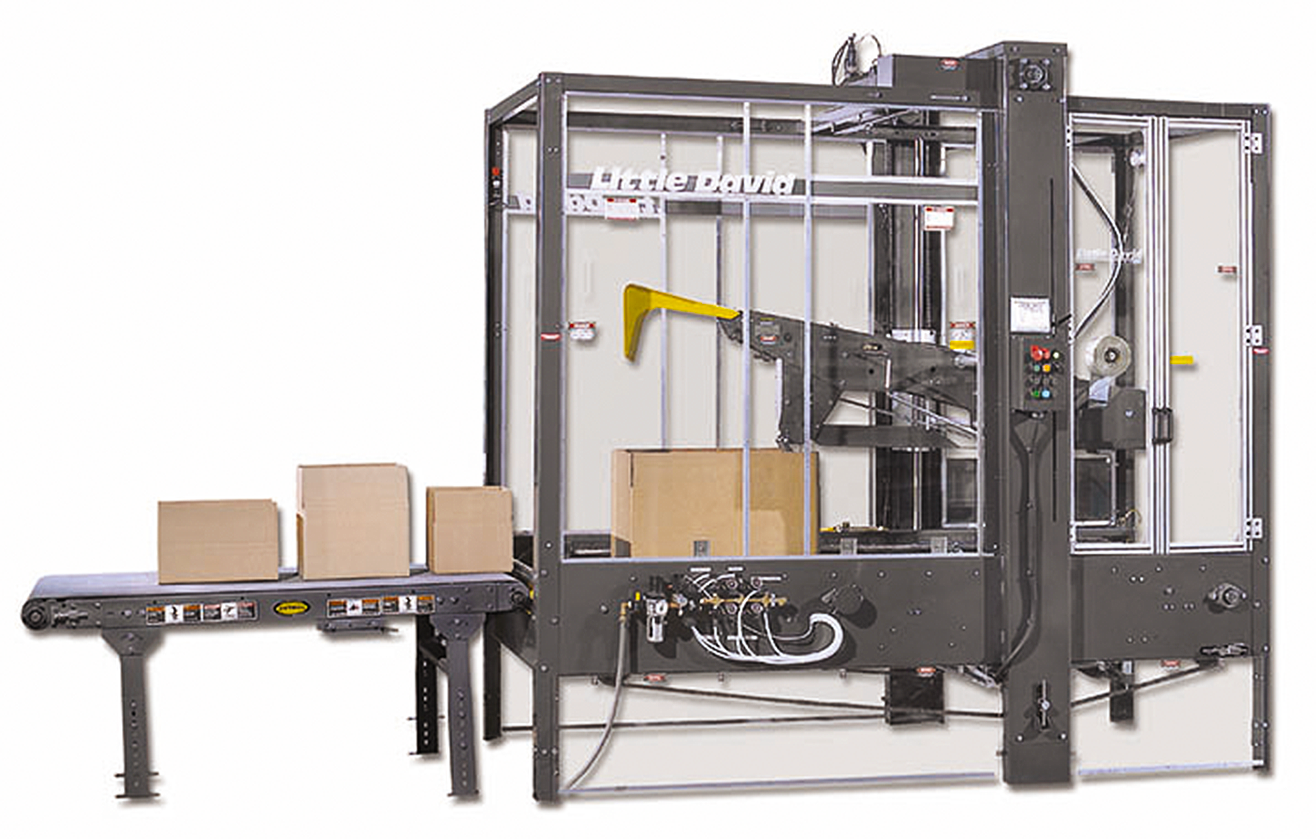

 Loveshaw Little David LD-16R Automatic Random Case Sealer

The Loveshaw Little David LD-16R Automatic Random Top And Bottom Case Sealer, provides fully automatic top and bottom case sealing for applications involving large runs of boxes of various sizes. This case sealing machine provides continuous box sealing, case sealing and /or carton sealing with automatic adjustments on case sealer and no operator assistance.



Features

Reliable Performance - Warranty:

  • 1 Year Servo Motor, Drive, and Gearbox*
  • 2 Years Gear Reducer
  • 3 Years Cartridge*

Quality Sealing:

  • Built-in indexing gate
  • Powered top squeezers to assure major flaps meet in case center
  • Flight bar drive
  • Linear self-centering side rails

Easy Operation:

  • No set-up required
  • Interchangeable, high-speed, pneumatic tape cartridges
  • Flip chart operation details

Safe:

  • Safety monitoring relay
  • Safety doors automatically shut down machine when opened

Reliability:

  • Servo controller
  • PLC controlled
  • NEMA 12 electrical enclosure

Construction:

  • 7 gauge steel, bolted welded frame

Specifications

  • Capacity: 10 Case Per Minute running Extreme Case Variances Operating Speed: equipment runs up to 10 cases /minute.
  • Power Requirements: 220 volts / 3 phase. Air Requirements: 7.5 CF free air per cycle @ 80PSI
  • Air Requirements: 7.5 CF free air per cycle @ 80PSI
  • Operating Speed: equipment runs up to 10 cases /minute

Options

  • Automatic or manual tape selectivity feature allows omission of either or both top and bottom closures
  • Special paints, lacquer, enamel, epoxy, special colors, and stainless steel
  • Spare pressure sensitive tape cartridge
  • Casters
  • Spare parts kit
  • Low tape warning
  • No tape warning
