Loveshaw Little David LD-3 SB

Semi-Automatic Uniform Case Sealer

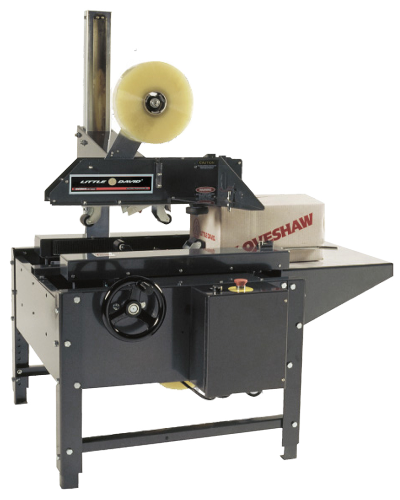

Loveshaw Little David LD-3 SB Semi-Automatic Uniform Case Sealer

The LD-3SB is a semi-automatic uniform case sealer / case taper by Loveshaw Little David. It is a reliable side belt drive uniform taper designed for long production runs of uniform sized cases/ boxes and carton.

This case sealer is often found where boxes are either high profile, lightweight or unstable.

Features

Reliable Performance - Warranty

  • 2 Years Gear Reducer and motor

  • 3 Years Cartridge*

Flexible

  • Tapes boxes from 4-1/2" (114mm) to 24" (610mm) in height

  • Uses pressure sensitive tape

Easy Operation

  • Plug in operation

  • Minimal operator training required

  • Sealed drive system

  • CaseLocker ST® tape cartridge requires no lubrication

  • Self-centering belts

Safety

  • Single mast design allows clear access

  • Knife guard system of the CaseLocker ST® tape cartridge only allows the blade to be exposed only when the rollers have been depressed

Options

  • Casters

  • Leg adjustments

  • High mast for box heights to 34" (864mm)

  • Front and rear standard or roller pack table

  • NEMA 4, NEMA 7

  • Stainless steel

  • 3-1/4" narrow box width option available

Specifications

Power Requirements

  • 110 VAC, single phase, 60 cycle

Operating Speed

  • Continuous belt drive; 72' per minute (21.9 m/min.) (production rate depends on box size & operator dexterity)

Weight

  • 230 lbs (104 kg) uncrated

Case Capacity: (with 2" wide CaseLocker ST® Cartridge)

  • Minimum: Maximum:

  • Height: 4-1/2" (114mm) to 24" (610mm)*

  • Width: 4" (102mm) to 20" (508mm)

  • Length: 3" (76mm) to infinite

  • *High mast version accommodates box heights to 34" (864mm)
