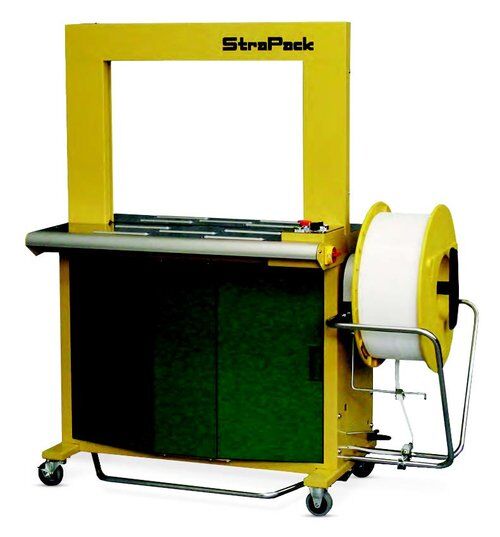

Samuel SQ-800

Strapping Machine with Brushless DC Motor

Introducing StraPack’s new line of strapping machine, the SQ-800 with brushless DC motor. The SQ-800 provides better efficiency without compromising the reliability of the legendary RQ-8x.

Standard Features

Strapping Speed

Standard strapping rate is 1.1 sec = 55 straps/min, even when a tension is applied. The machine is ready to operate in less than 25 seconds, contributing to increased packaging line efficiencies.

Adjustable Table Height (Option)

Height can be set to 8 positions from floor level for easy integration into existing packaging lines: 794, 809, 824, 839, 854, 869, 884 & 899 mm (31-1/4”, 31-7/8, 32-1/2”, 33”, 33-5/8”, 34-1/4”, 34-3/4” & 35-3/8”).

Even Less Moving Parts, wtih Self-Lubricating Design

Using the DC motor for the Cam Shaft eliminates the need for clutch, brake, V-belt (A type), FR roller, driven micro-V belt, and back tension. This means less moving parts and less maintenance cost. The self-lubricating design also reduces wear and tear and increases operational life.

Less Dusting

At standard speed, the DC motor allows the rollers to run only during feeding and reversing. This reduces strap dust, which in turn, reduces dust build up.

Various Tension Setting

The SQ-800 offers different modes of tensioning system which can be selected according to the application requirements. A wide range of tension is available via a digitally controlled tension dial. Tension capability is up to 80kgf or 176lbf (equivalent of 150mm or 6” stroke). Unlike many other machines in the market, tension does not compromise the cycle speed.

Quiet

Noise reduction during standby mode lessens the excessive noise pollution in the workplace.

Other Features

  • Easy strap loading

  • Automatic Re-Feed

  • Anti-Jam Function

  • Strap Cycle Foot Bar (Optional)

Features

  • Ready to operate in less than 25 seconds

  • Adjustable Table Height

  • Less Moving Parts

  • Self-Lubricating Design

  • Less Dusting

  • Various Tension Setting

  • Reduced Noise During Standby Mode

  • Easy Strap Loading

  • Automatic Re-Feed

  • Anti-Jam Function

Specifications

Standard Arch Size (650mm wide x 500mm high or 25” wide x 20” high)

Dimensions

  • Width: 1254 mm

  • Height: 1403 – 1508 mm

  • Depth: 609 mm

  • Weight: 146 kg

Table Height: 794 – 899 mm

Package Size

  • Max: W 620 X H 480 mm

  • Min: W 80 X H 30 mm

Joint/Strap/Coil: Heat Seal / Polypropylene

Strap Width: 5, 6, 9, 12, 15.5 mm

Power Supply: 100, 120, 220, 230, 240V Single phase 50/60Hz 0.74kVA
